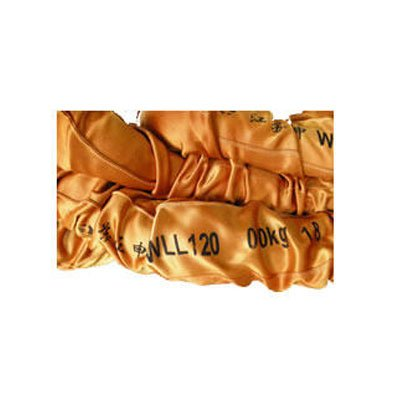

Circular flexible lifting belt.

20-Jan , 25

Main technical data:

1. Standards: International standard ISO4748, European standard EN1492-2, partial standard JB/T8521;

2. Comply with CE and GS safety requirements;

3. Material: high-strength polyester (100% PES), nylon;

4. Safety factor: 6:1 or 8:1;

5. Scope: Color code or other requirements;

6. Elongation:<2% - 5% under ultimate working force;

7. Length: according to customer requirements;

8. Working load: 0.5T-1000T (special specifications can be customized).

REQUEST A QUOTE

DESCRIPTION

Main technical data:

1. Standards: International standard ISO4748, European standard EN1492-2, partial standard JB/T8521;

2. Comply with CE and GS safety requirements;

3. Material: high-strength polyester (100% PES), nylon;

4. Safety factor: 6:1 or 8:1;

5. Scope: Color code or other requirements;

6. Elongation:<2% - 5% under ultimate working force;

7. Length: according to customer requirements;

8. Working load: 0.5T-1000T (special specifications can be customized).

Advantages of annular flexible lifting belts:

1. Suitable for lifting circular and annular objects

2. High strength and weight

3. There are many lifting methods for flexible lifting belts and the lifting belts are evenly stressed, resulting in a longer working life of the lifting belts

4. There are many lifting methods, which can also be used to drag the lifted object

5. Additional anti wear and anti cutting protective sleeves are available

6. Non conductive, no danger of electric shock

7. The flexible packaging loop back sling is made of 100% PES, and the inner bearing core is surrounded by a stepless loop to form a circular 100% PES woven into a stress free sleeve to protect the bearing core.

8. Especially suitable for lifting circular and annular objects.

9. The outer surface of the flexible lifting belt is fine, smooth objects will not cause damage, and vulnerable objects will not be damaged

10. Lightweight and soft, easy to use in small spaces.

11. Maximum load 0.5-500 tons, effective length 0.5-80 meters

12. Comply with Chinese industry standard JB/T8521-2007

13. The elastic elongation of flexible lifting belts is small,<2% under working load and<12% under breaking load

14. Temperature range used - 40 ℃ - 180 ℃

15. Additional anti wear and anti cutting protective covers are available.
