18-Mar , 25

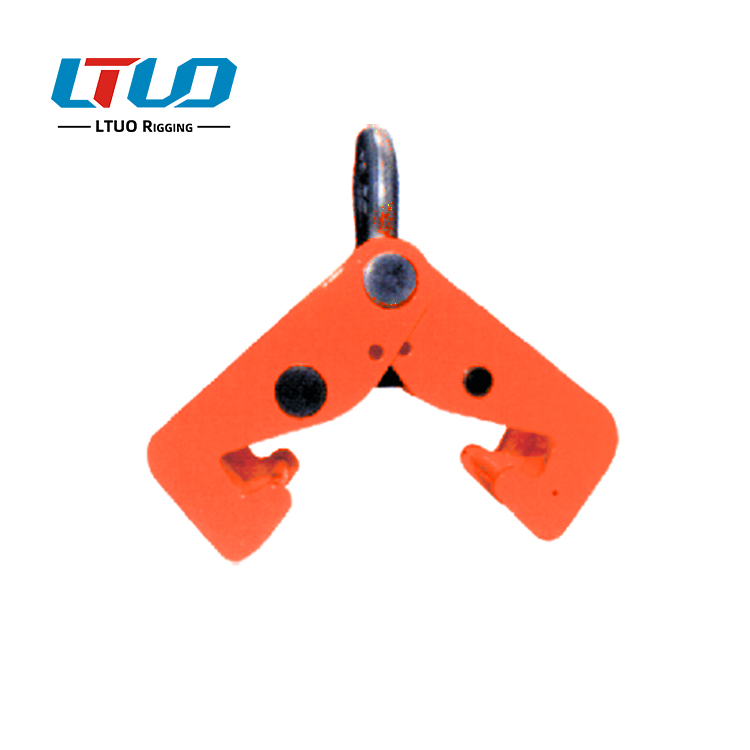

Fixed on the beam, suspension block, electric hoist and sling.
The test load is 2 times the maximum working load and the breaking load is 4 times the maximum working load.I. Overview of beam hangers and rail clamps
Hanger: A frame used in electroplating and related operations to suspend workpieces and apply current to them.
There are many forms of hangers, there are general hangers that can apply several common parts, and there are special hangers for large quantities of parts. For geometrically complex plating parts, some should be equipped with auxiliary anode, auxiliary cathode or shielding plate.
The basic principles of the design of the hanger are: sufficient mechanical strength and good electrical conductivity, light weight, easy loading and unloading, and solid contact between the parts and the hanger.
The clamp is mainly composed of seven parts: hanging beam, connecting rod, opening and closing mechanism, synchronizer, clamp arm, support plate and clamp teeth.
Hanging beam
The hanging beam is a part connected with the sky coupler, which has three kinds of structures: the hanging ring shackle connection, the sling sling connection and the lifting lug connection.
Connecting rod
The connecting rod is the connection between the hanging beam and the clamp arm.
Opening and closing mechanism
The opening and closing mechanism has the form of manual lifting rod type, (automatic) double hook type, (automatic) single hook type, (automatic) turnlock type and so on.
synchronizer
Synchronizer is a device to ensure that each clamp arm moves synchronously.
Tong arm
The clamp arm is the main forcing-strengthening component of the fixture, through which the billet is picked up.
Support plate
The support plate is the supporting part of the billet fixture. The support plate is supported on the upper surface of the billet to ensure the smooth operation of the opening and closing mechanism of the billet fixture.
Forceps teeth
The clamp teeth have the structure of pin shaft coupling, dovetail coupling and slot splicing. The clamp teeth are the main parts in direct contact with the billet, which determines the reliability of the billet clamping fixture.
REQUEST A QUOTEDESCRIPTION
Hebei Lituo cable has limited company is a set of research, development, production as one of the professional manufacturers, the main products are various specifications of steel wire rope, steel wire rope sling, nylon rope sling, special fiber flexible lifting belt series, flat sling series, safety net series, safety belt series, lifting chain series, beam sling series, metallurgical fixture series and three-action tool series. Products are widely used in metallurgy, machinery, railway, petrochemical, port, electric power, automobile, aviation, construction and other fields.
The company has strong technical force, advanced technology, complete testing facilities and excellent quality assurance system. The product quality liability insurance is undertaken by PICC, which has obtained the quality certificate issued by the quality supervision department and successfully passed the ISO9001-2000 international quality system certification of classification Society. Welcome to buy.
