Steel plate tongs for horizontal lifting

　　Also known as horizontal steel plate lifting pliers, it is a necessary lifting tool for factories, construction and major steel mills, especially for cold working welding and welding of large steel plate members. The use of universal steel plate lifting tools brings great convenience to production and can improve production efficiency. So what is the structure principle and use method of steel plate lifting tongs?

　　The transverse lifting steel plate pliers have the characteristics of uniform distribution of horizontal lifting. During the lifting operation, the mouth of the transverse lifting clamp is opened, firmly clamped on the heavy objects to be operated, and then lifted. When disassembling, the lifting pliers should be removed after the heavy object lands on the ground without load. Vertical lifting steel plate pliers are equipped with self-locking device, safe and reliable work. Convenient operation, high efficiency, easy maintenance. The steel clamp produced by Yangtze River Cosco Sling harness is made of high quality steel, which is safe and reliable, compact in structure, light in weight. It is used with the fixed hanging beam, easy to install, and quick and convenient to adjust the clamping width. Widely used in automobile, aviation, metallurgy and other fields.
　　The lifting shaft hole at the upper part of the lifting hook of the steel plate pliers is inclined to the opening side of the vertical line in the middle of the horizontal steel plate pliers to ensure that the lifting plane of the horizontal steel plate pliers is always in the state of hooking heavy objects, so that the steel plate being lifted is firmly stuck on the lifting pliers and will not slip from the lifting pliers.

　　The lifting press plate and the lifting wire rope are connected with the lifting ring. The lifting pressure plate presses the role of the steel plate to be lifted, and makes a circular arc. The purpose is to make the pressing point always in the lifting plane of the lifting hook for the lifting steel plate of different thickness, so as to achieve stable, safe and reliable lifting.

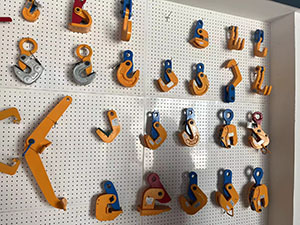

　　Steel plate lifting pliers

　　Use method of:

　　Before the steel plate is stuck into the horizontal steel plate lifting pliers, pull the lifting press plate to make the horizontal steel plate lifting pliers open, insert and move the two lifting hooks respectively to the steel plate to be lifted, close to the bottom surface of both sides of the middle straight line, pull the lifting press plate through the lifting wire rope, and the lifting steel plate will be tightly clamped to the hook, then the lifting can be done. The steel plate should be placed in the place of the cushion block in advance, in order to lift the hook out.

　　To lift steel plates with large lengths, in order to prevent excessive deflection or reduce the bending deformation of the lifting parts, two pairs of horizontal steel plate lifting pliers can be used.

　　Steel plate tongs for horizontal lifting

　　Simple structure, convenient operation, high production efficiency, safety and reliability, lifting steel plate thickness specification range. When lifting steel plates of different thickness, they can be lifted equally without any adjustment.
