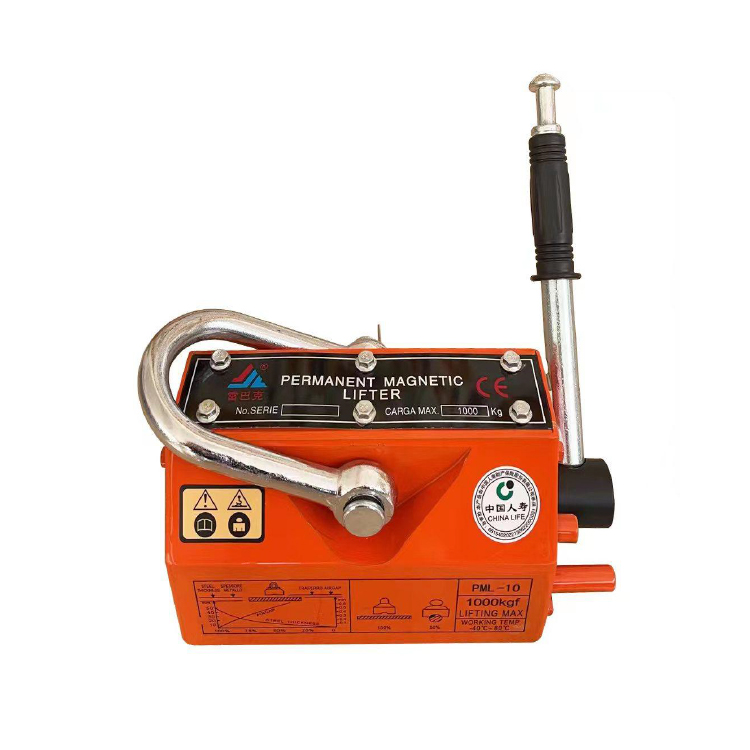

Permanent magnet chuck (also known as permanent magnet jack, magnetic crane) is divided into manual permanent magnet jack and automatic permanent magnet jack two kinds, the use of contemporary high-performance magnetic material Ndfe-B, so that it is small, light weight, strong holding force, unique magnetic circuit design, remanence is almost zero. High safety factor, max pulling force is 2.5-3.5 times the rated lifting gravity. Manual permanent magnet jack handle switch has ordinary galvanized, chrome-plated anti-slip, chrome-plated anti-collision several handles, can be operated with one hand, convenient and safe. Lifting bottom "V" groove design. The automatic permanent magnet jack does not need manpower to pull the handle, and relies on the lifting control and adsorption of the hook under the electric crane, which can lift the corresponding round steel and steel plate, without electricity, and is safe to use. It is widely used in the lifting and handling of steel, the installation and handling of flat mechanical parts and various molds.
It is suitable for lifting and handling of steel plate at normal temperature in shipbuilding, construction machinery, automobile, aviation and other industries. It is mainly used for the connection of the workpiece to be hoisted in the lifting process, (such as: matching with the chain electric hoist, wire rope electric hoist, etc.) for moving iron plates, blocks and cylindrical magnetic conductive materials. Easy to operate, safe and reliable, compact results, lightweight and portable. Widely used in factories, docks, warehouses, transportation industry. Improve the working conditions of loading, unloading and handling operations to improve work efficiency.
REQUEST A QUOTEDESCRIPTION
1. When lifting, clean the surface of the workpiece to be lifted first. If there is rust or convex thorns, clean it. The center line of the permanent magnet jack should coincide with the center of gravity line of the workpiece, and then the jack is placed ON the working plane, and the rotating handle is rotated from the "OFF" position to the "ON" direction to the safety pin. Check that the safety Angle block of the handle is automatically locked, and then lift.
2. when the workpiece is lifted, it is strictly prohibited to overload, strictly prohibited the human body from under the workpiece, the temperature of the suspended workpiece and the ambient temperature are not more than 80 degrees, no violent vibration and impact.
3. lifting the cylindrical workpiece, should keep the V-shaped slot and the workpiece Angle is two straight contact, so its lifting gravity is only 30%-50% of the rated lifting gravity.
4. after the completion of lifting, push the handle button inward, so that the safety Angle block on the handle is separated from the safety pin. The handle is rotated from "ON" to "OFF" to the original position. Keep the jack in the closed state, and the end piece is detached from the jack.
