Lifting electromagnet.

19-Dec , 24

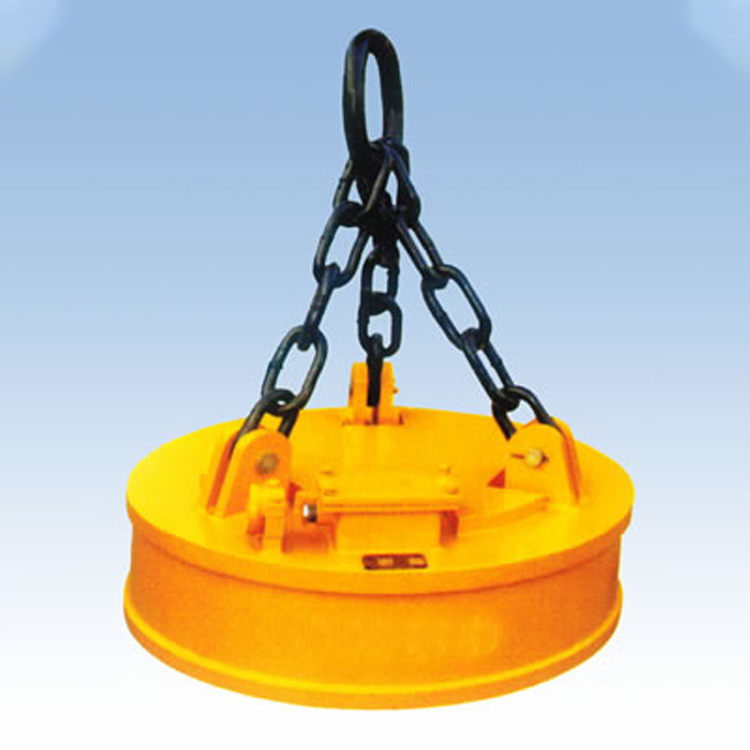

MW5 series standard lifting electromagnet for lifting scrap

1, the use of special magnetic circuit design, air gap magnetic density. The coil adopts aluminum wire, and the coil protection plate adopts good wear resistance and strong impact resistance

Made of high manganese steel plate. Light weight, low energy consumption, large lifting weight, long service life.

2. Reasonable insulation structure. The insulation treatment adopts vacuum drying and vacuum gluing, which improves the electrical and mechanical properties of the coil. Insulating material

The heat resistance grade of the material can reach special class C.

3, usually use a fixed voltage control mode, if the use of strong excitation control mode, can further improve the lifting capacity.

4, simple structure, safe and reliable, suitable for all kinds of lifting equipment.

5, the supporting electronic control device can be equipped with wireless remote control device according to the user's driving parameters, to achieve remote wireless remote control.
