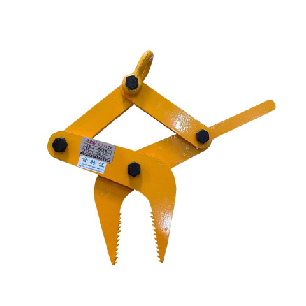

MV Cable pulling pliers.

20-Dec , 24

Rated load: 1-3 tons

Purpose: Suitable for wire clamping and lifting

MV wire pulling clamp is a kind of damping, simple structure, high reliability, long service life of wire pulling clamp.

One end of the clamp body has a sealing cavity, the other end has a clamp seat, the sealing cavity has a pull rod, one end of the pull rod through the sealing cavity and the slider is connected, the other end through the sealing cavity and the balance seat is connected, the outer sleeve of the pull rod in the sealing cavity has a compression spring, the sealing cavity has a gas channel.

REQUEST A QUOTE

DESCRIPTION

Working principle: there are guide rails on both sides of the slide block. The two sides of the clamp body are hinged with a support plate, each side of the support plate and the same side of the clamp seat hinged, the other end of each side of the support plate through the guide post and the slider connection, each side of the support plate has a connecting rod, connecting rod end and the same side of the clamp seat hinged, the other end and the clamp body hinged, connecting rod, clamp seat, support plate, the formation of a quadrilateral structure between the clamp body. The tie rod is damped, which can reduce the damage of the impact force to each component in the working process, improve the service life and reduce the production cost.

TAG:

MV Cable pulling pliers

MV Cable pulling pliers.
