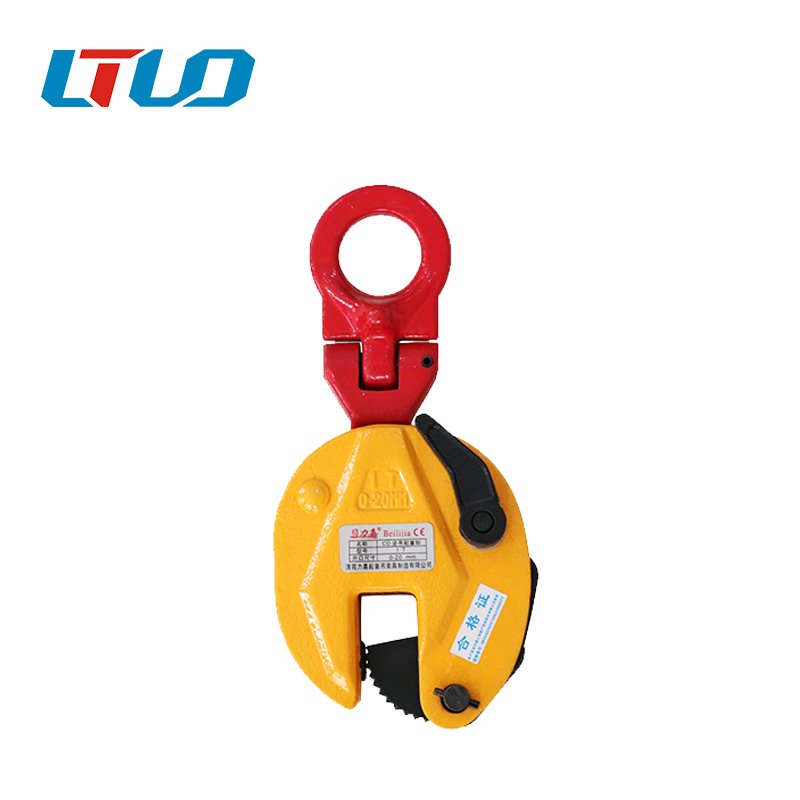

Lifting sling
Professional manufacturer
Lifting sling
Professional manufacturer
06-Jan , 25

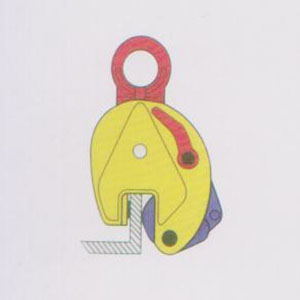

Uses: Suitable for vertical hoisting of steel plates.
Casting material: It is made of Shougang low-carbon high-quality alloy steel.
Load range: 0-30 tons.
How to use: Take a single test as the rated load, and use it with both limbs or four limbs during hoisting operations.
Test load method: rated load × 2.
Note: Do not collide with the suspended object. Overloading is strictly prohibited. Only one steel plate can be hoisted at the same time, stacked hoisting is strictly prohibited. When hoisting, the handle of the pull ring must be raised to make the spring tension. When unloading, the handle of the pull ring is downward, and the signature and the steel plate can only be separated after the spring is relaxed. In the non-working state with the spring lock, the lock will tighten naturally, and the clamping force of the hanging object will increase proportionally.
REQUEST A QUOTEDESCRIPTION
Uses: Suitable for vertical hoisting of steel plates.
Casting material: It is made of Shougang low-carbon high-quality alloy steel.

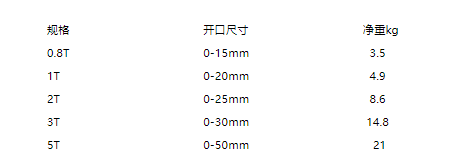

Load range: 0-30 tons.

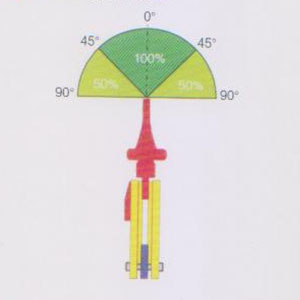

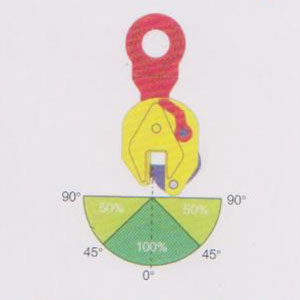

How to use: Take a single test as the rated load, and use it with both limbs or four limbs during hoisting operations.
Test load method: rated load × 2.
Note: Do not collide with the suspended object. Overloading is strictly prohibited. Only one steel plate can be hoisted at the same time, stacked hoisting is strictly prohibited. When hoisting, the handle of the pull ring must be raised to make the spring tension. When unloading, the handle of the pull ring is downward, and the signature and the steel plate can only be separated after the spring is relaxed. In the non-working state with the spring lock, the lock will tighten naturally, and the clamping force of the hanging object will increase proportionally.

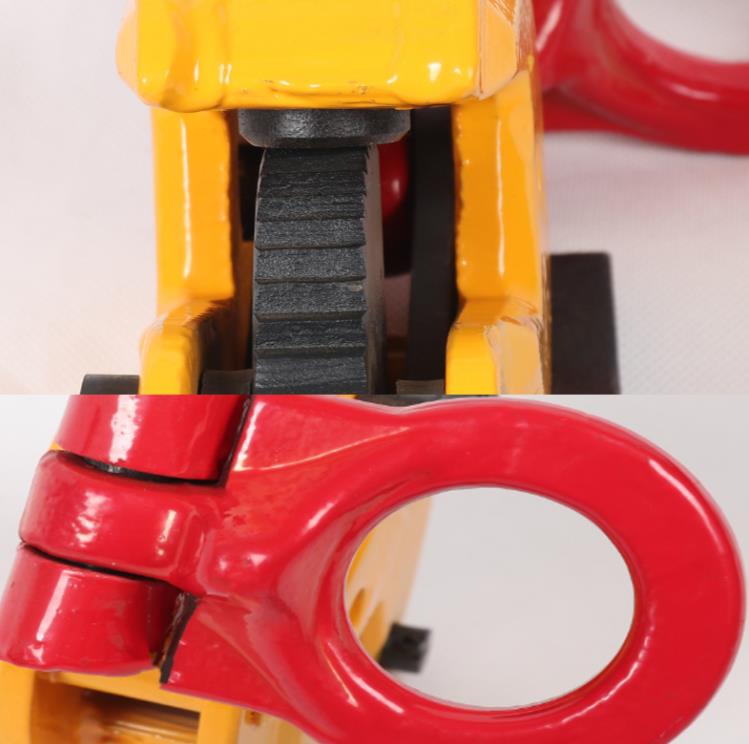

Features: Forged with low-carbon high-quality alloy steel, compact structure, light weight, fixed hanging beam, quick and easy to adjust the width of the clamping rail, equipped with a spring locking device to ensure that it does not slip. The lifting ring is made of alloy steel with high wear-resistant material, which can be used for a longer period of time without breaking.
